Replied by GFrench on topic GFrench- 1971 DT1F MX Restoration

After all these years..... Finally built my Dream Shop when we moved to East Texas recently!

This image is hidden for guests.
Please log in or register to see it.

It all full of good stuff now... but where it was when finished

This image is hidden for guests.
Please log in or register to see it.

If it ain't smokin', it's broken!
1970 RT1 360
1970 RT1 360
1971 CT1 175
1971 DT1F MX 250
1971 DT1 250
1971 DT1 250
1971 RT1 360
1973 RT3 360 "Black Widow"
1973 RT3 360
1974 DT 360
1976 IT 400 / redesigned as a 75 MX400
1980 YZ 465

The following user(s) Liked this Post: Rick C., MarkT, Snglsmkr, pabdt, Ht1kid, Sneezles61, SoCal_Dad

Last edit: 04 Dec 2025 20:36 by GFrench.

04 Dec 2025 20:34 #61

Please Log in or Create an account to join the conversation.

GFrench
Topic Author
Online
Supporting Moderator

Posts: 994
Likes received: 892

Replied by GFrench on topic GFrench- 1971 DT1F MX Restoration

Time to start inspecting and detailing the Front and Rear Wheels...

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

Will be installing new Brake Shoes as these are dated 2010- Great Job Rick writing on the shoes the date of installation on these.... A GREAT Process Everyone should follow.

This image is hidden for guests.
Please log in or register to see it.

Another thing that I have found... is to use Windex to clean the tires if you want to show them as looking Brand New! Just spray and wipe them down with a micro towel- In the tread area a nice soft brush works good to work the Windex.

This image is hidden for guests.
Please log in or register to see it.

Got the first few pieces done for the rear wheel- now moving on to the Hubs and Spokes to get those cleaned up.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

If it ain't smokin', it's broken!
1970 RT1 360
1970 RT1 360
1971 CT1 175
1971 DT1F MX 250
1971 DT1 250
1971 DT1 250
1971 RT1 360
1973 RT3 360 "Black Widow"
1973 RT3 360
1974 DT 360
1976 IT 400 / redesigned as a 75 MX400
1980 YZ 465

The following user(s) Liked this Post: Rick C., MarkT, Snglsmkr, pabdt, Ht1kid, Sneezles61

Last edit: 08 Dec 2025 12:31 by GFrench.

08 Dec 2025 11:19 #62

Please Log in or Create an account to join the conversation.

Tinker man
Offline
Site Supporter

Posts: 60
Likes received: 29

Replied by Tinker man on topic GFrench- 1971 DT1F MX Restoration

Even if I won the lottery I couldn’t build this. And certainly wouldn’t have enough to buy anything to put in it…. Shed envy.

I love taking stuff to bits - putting back together is another thing altogether.

The following user(s) Liked this Post: Rick C.

08 Dec 2025 14:10 #63

Please Log in or Create an account to join the conversation.

Rick C.
Offline
Platinum Member

Posts: 1099
Likes received: 949

Replied by Rick C. on topic GFrench- 1971 DT1F MX Restoration

Are those the same tires I put on?
Also put them on in 2010, and if they are I need to get me another set of Dunlop 606's.
Amazing work Greg!

09 Dec 2025 16:04 #64

Please Log in or Create an account to join the conversation.

8ender
Offline
Junior Member

Posts: 28
Likes received: 26

Replied by 8ender on topic GFrench- 1971 DT1F MX Restoration

Alright, dating parts I install is a new thing I need to do. What a stupidly simple but good idea.

The following user(s) Liked this Post: GFrench, Rick C.

09 Dec 2025 19:59 #65

Please Log in or Create an account to join the conversation.

pabdt
Online
Platinum Member

Posts: 633
Likes received: 447

Replied by pabdt on topic GFrench- 1971 DT1F MX Restoration

Well Rick, you have till 2040 to change your current tires...by then who needs tires... lol DTs will have flight conversion kits.

________________________________________________
1969 Yamaha CT1 175
1974 Yamaha DT125A
1974 Yamaha DT360A with SP96 Exhaust
Next…196x-197x Yamaha something.

The following user(s) Liked this Post: Rick C.

09 Dec 2025 20:22 #66

Please Log in or Create an account to join the conversation.

GFrench
Topic Author
Online
Supporting Moderator

Posts: 994
Likes received: 892

Replied by GFrench on topic GFrench- 1971 DT1F MX Restoration

Replied by Rick C. on topic GFrench- 1971 DT1F MX Restoration
Are those the same tires I put on?
Also put them on in 2010, and if they are I need to get me another set of Dunlop 606's.
Amazing work Greg!

Hey Rick- Yes same tires you put on... they are in Great Shape and will clean up very nice.

The Dunlop 606's are great indestructible tires for sure and just fit the look of the MX nicely!

This image is hidden for guests.
Please log in or register to see it.

If it ain't smokin', it's broken!
1970 RT1 360
1970 RT1 360
1971 CT1 175
1971 DT1F MX 250
1971 DT1 250
1971 DT1 250
1971 RT1 360
1973 RT3 360 "Black Widow"
1973 RT3 360
1974 DT 360
1976 IT 400 / redesigned as a 75 MX400
1980 YZ 465

The following user(s) Liked this Post: Rick C.

10 Dec 2025 12:05 #67

Please Log in or Create an account to join the conversation.

GFrench
Topic Author
Online
Supporting Moderator

Posts: 994
Likes received: 892

Replied by GFrench on topic GFrench- 1971 DT1F MX Restoration

It's been a bit crisp here in Texas past couple of days.... will be back in the 70's mid next week... this is why I live here!

So tackled the Cylinder today to first get the old base gasket removed... its pretty anchored down for sure... using a little heat and Penetrating Oil to get it softened up then getting after it!

This image is hidden for guests.
Please log in or register to see it.

Carefully using a single edge (New) Razor bladed was able to get under it and start removing

This image is hidden for guests.
Please log in or register to see it.

Next will take my scuff pad with some WD40 and continue to work the remaining residue off.

This image is hidden for guests.
Please log in or register to see it.

After working my fingers to the bone cleaning all the cylinder fins and crevices.... I decided to expose the edges on the fins....
this cylinder has a very good / Solid Black paint which is the way the factory may have had it back in 71?

I usually just like to do enough to break up the solid color but not go overboard and hit every fin... so kinda ended up here... we'll see how it looks once I get the bike together to see if I need to give it less or a bit more exposed fins for the right look... so far it seems to work

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

Its starting to look real pretty -

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

Now time to start getting the Very Special "MX" Head cleaned up and to get it ready to go... will be verifying the Timing first prior to putting the head on.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

If it ain't smokin', it's broken!
1970 RT1 360
1970 RT1 360
1971 CT1 175
1971 DT1F MX 250
1971 DT1 250
1971 DT1 250
1971 RT1 360
1973 RT3 360 "Black Widow"
1973 RT3 360
1974 DT 360
1976 IT 400 / redesigned as a 75 MX400
1980 YZ 465

The following user(s) Liked this Post: Snglsmkr, pabdt, Ht1kid, Sneezles61

Last edit: 15 Dec 2025 13:22 by GFrench.

15 Dec 2025 13:15 #68

Please Log in or Create an account to join the conversation.

GFrench
Topic Author
Online
Supporting Moderator

Posts: 994
Likes received: 892

Replied by GFrench on topic GFrench- 1971 DT1F MX Restoration

Now its getting Serious!

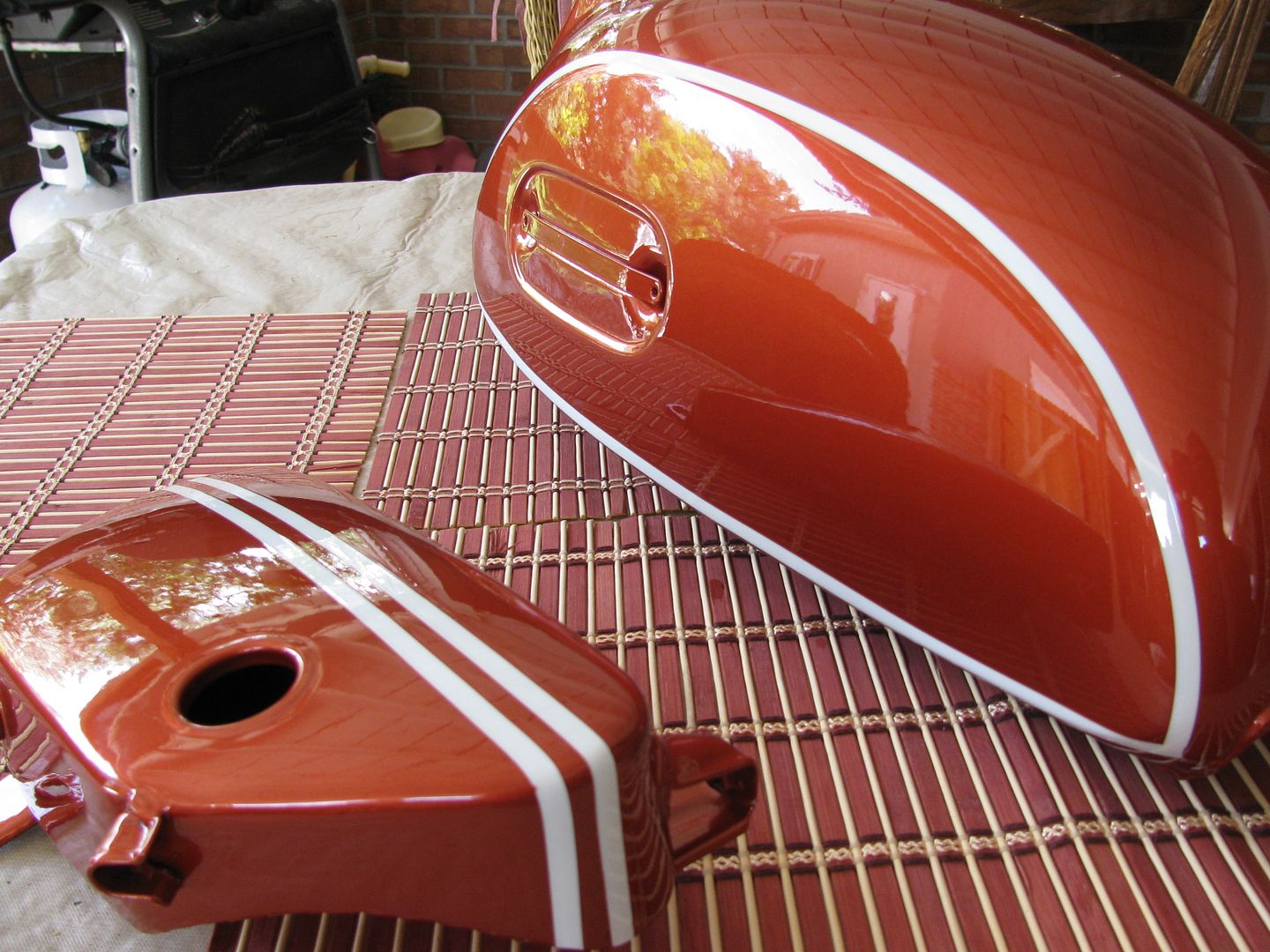

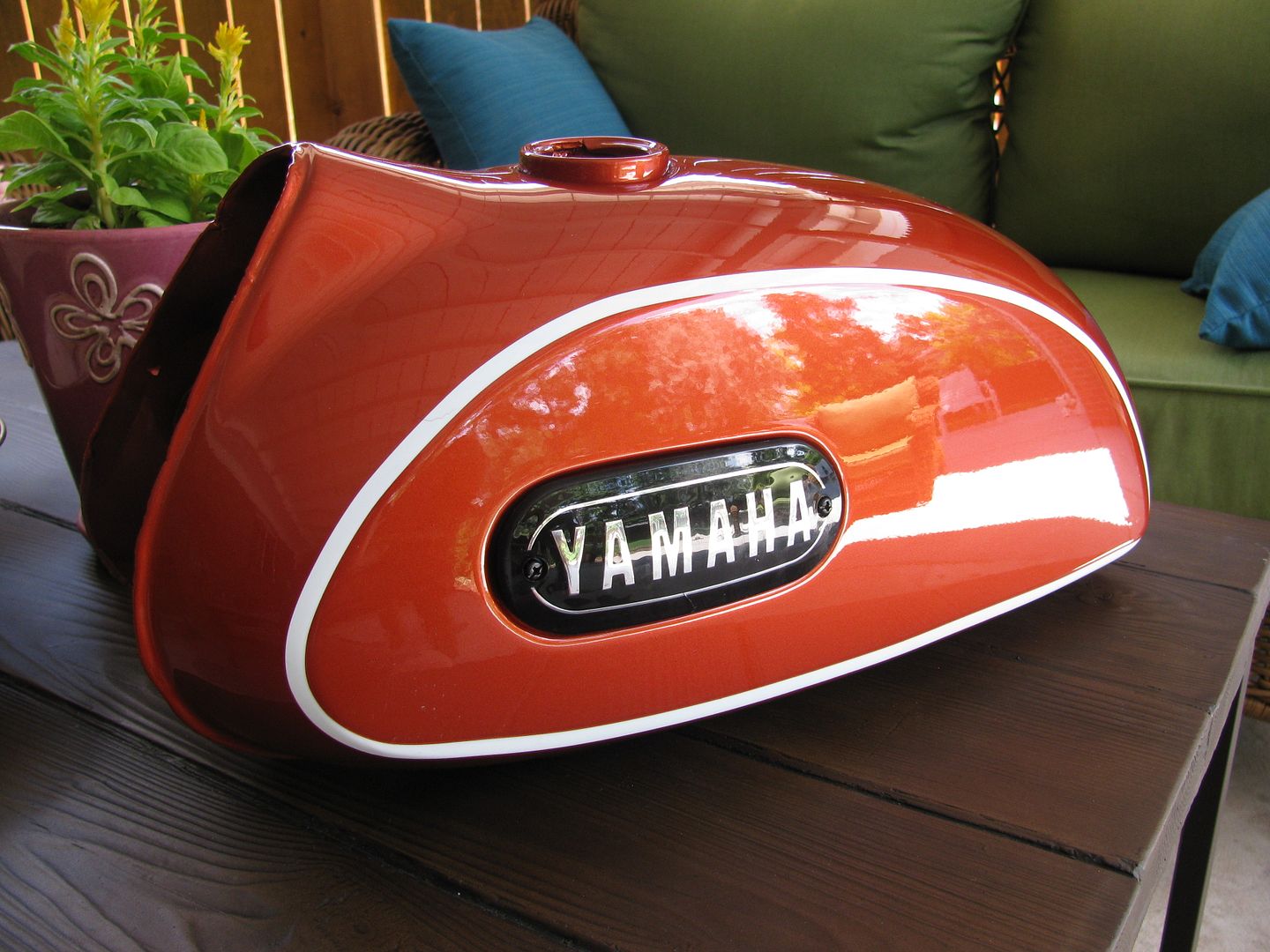

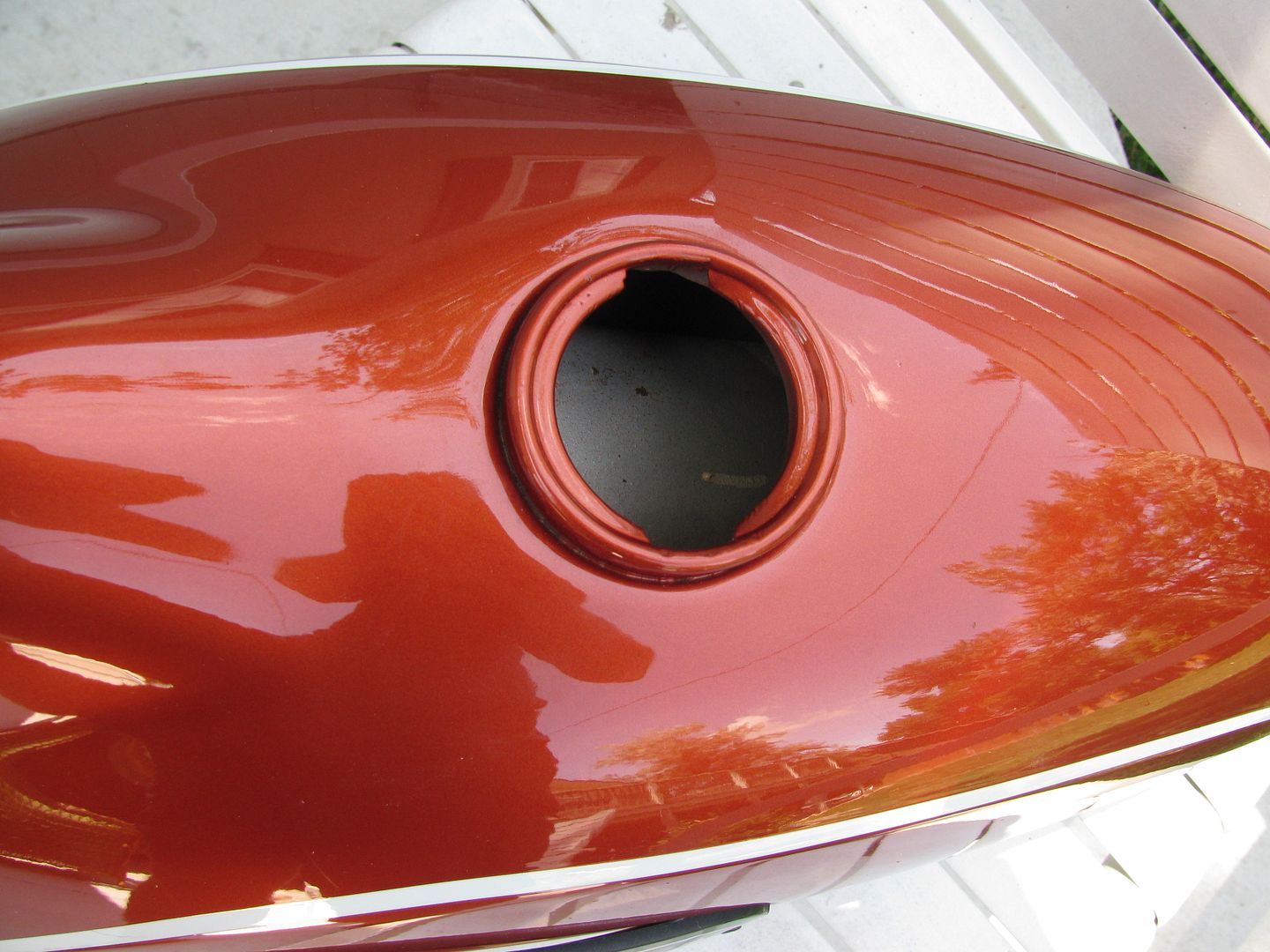

Christmas came early for me- Paint turned out amazing!

I have the new "250" decal to go on the Oil Tank... will just lightly scuff pad the paint and apply decal and reclear it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

This image is hidden for guests.
Please log in or register to see it.

Wont be long now!

If it ain't smokin', it's broken!
1970 RT1 360
1970 RT1 360
1971 CT1 175
1971 DT1F MX 250
1971 DT1 250
1971 DT1 250
1971 RT1 360
1973 RT3 360 "Black Widow"
1973 RT3 360
1974 DT 360
1976 IT 400 / redesigned as a 75 MX400
1980 YZ 465

The following user(s) Liked this Post: Rick C., Snglsmkr, pabdt, Ht1kid, Sneezles61, pahiker

Last edit: 15 Dec 2025 19:23 by GFrench.

15 Dec 2025 19:17 #69

Please Log in or Create an account to join the conversation.

eddy20
Offline
Premium Member

Posts: 54
Likes received: 13

Replied by eddy20 on topic GFrench- 1971 DT1F MX Restoration

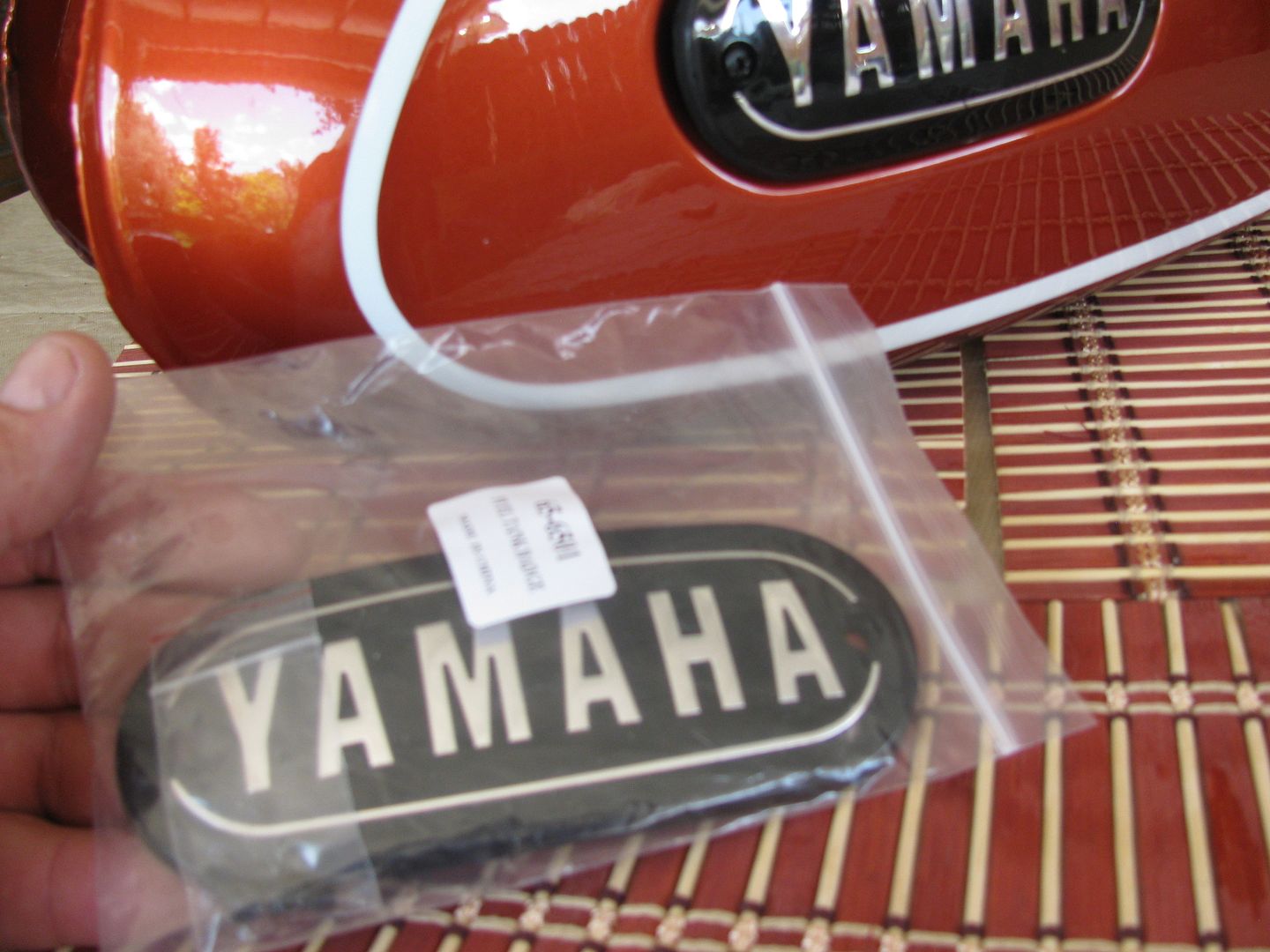

Where did you get the new tank badges? I need to order some for my 69 DT1 and 70 DT1-CM.

15 Dec 2025 19:56 #70
